Square LED Panel Light
- Brand: LEDE
- Type:
Features:
1.Super bright SMD2835 LED as lighting sources;high efficiency energy Saving Eco friendly;
2.Aluminium alloy frame with high thermal conductivity simple and nice;
3.Integrated heat dispersion structure low lumens depreciation and long lifespan;
4.External constant current driver universal available;
5.Easy to install.
Technical Parameter:
| Model | Power | Length | Width | Depth | Color | view angle | Operating Temp.Range | BeamLife time | Certificate |
| LD-FPLB01 | 12W | 300mm | 300mm | 14mm | White | 120° | -10~+40℃ | 30,000-50,000hrs | CE, RoHS |
| LD-FPLB02 | 20W | 600mm | 300mm | 14mm | White | 120° | -10~+40℃ | 30,000-50,000hrs | CE, RoHS |
| LD-FPLB03 | 36W | 600mm | 600mm | 14mm | White | 120° | -10~+40℃ | 30,000-50,000hrs | CE, RoHS |
| Model | Power | Input Voltage |
LED Qty./Type |
CCT | CRI | Luminous Flux | P F | Warranty |
|
LD-FPLB01 |
12W |
AC 100~277V |
60Pcs/2835 |
2700-6500K |
≥ 80 |
900-1080 |
≥0.75 |
2 years |
|
LD-FPLB02 |
20W |
AC 100~277V |
100Pcs/2835 |
2700-6500K |
≥ 80 |
1500-1800 |
≥0.75 |
2 years |
|
LD-FPLB03 |
36W |
AC 100~277V |
180Pcs/2835 |
2700-6500K |
≥ 80 |
2700-3240 |
≥0.85 |
2 years |
Photoelectricity Parametr:

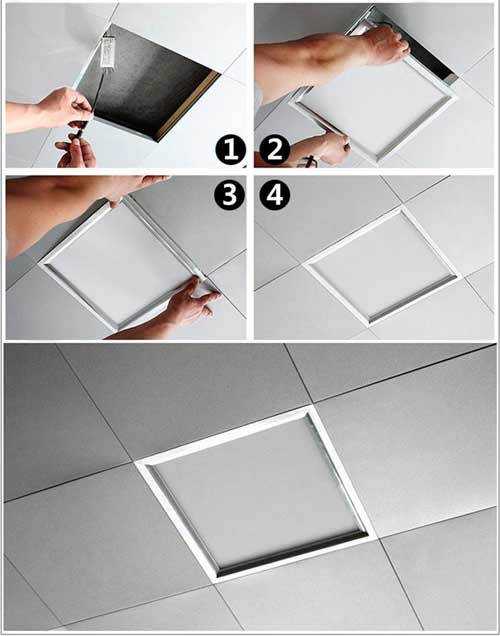

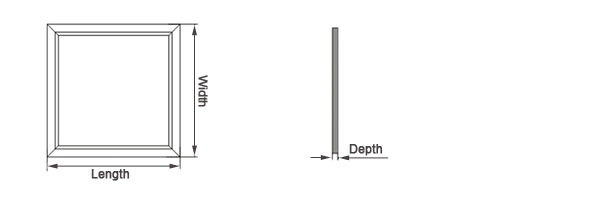

Installation Drawing:

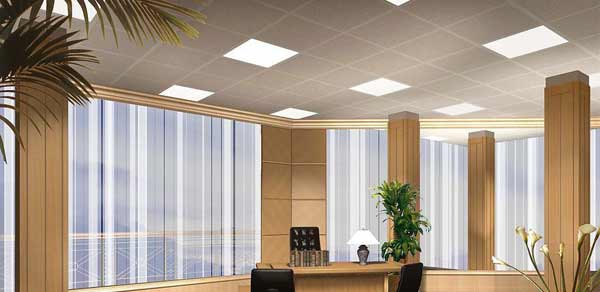

Application:
> 1.Residential Buildings, Home
> 2.Office, Meeting Room
> 3.School, Library
> 4.Factory, Warehouse
> 5.Hotel, Casino
> 6.Parking Garage
> 7.Hospital
> 8.Commercial Center
> 9.Supermarket, Shopping mall,anywhere you want
