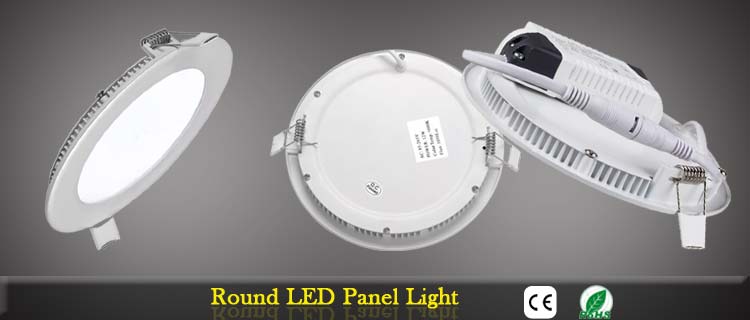

Round LED Panel Light

Update: 2014/7/23 View:

Brand: LEDE
Type:

Introduction

Features:

1.Super bright SMD2835 LED as lighting sources;high efficiency energy Saving Eco friendly;
2.Aluminium alloy frame with high thermal conductivity simple and nice;
3.Integrated heat dispersion structure low lumens depreciation and long lifespan;
4.External constant current driver universal available;
Technical Parameter:

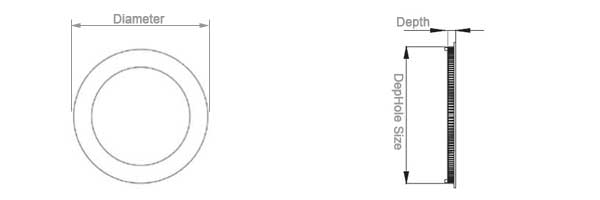

Model	Power	Diameter	Depth	DepHole Size	view angle	Operating Temp.Range	BeamLife time	Color
LD-YPL01	3W	Φ90mm	20mm	Φ75mm	120°	-10~+40℃	30,000-50,000hrs	White
LD-YPL02	6W	Φ120mm	20mm	Φ105mm	120°	-10~+40℃	30,000-50,000hrs	White
LD-YPL03	9W	Φ150mm	20mm	Φ130mm	120°	-10~+40℃	30,000-50,000hrs	White
LD-YPL04	12W	Φ170mm	20mm	Φ155mm	120°	-10~+40℃	30,000-50,000hrs	White
LD-YPL05	15W	Φ195mm	20mm	Φ175mm	120°	-10~+40℃	30,000-50,000hrs	White
LD-YPL06	18W	Φ225mm	20mm	Φ205mm	120°	-10~+40℃	30,000-50,000hrs	White
LD-YPL07	24W	Φ300mm	20mm	Φ280mm	120°	-10~+40℃	30,000-50,000hrs	White

Model	Power	Input Voltage	LED Qty./Type	CCT	CRI	Luminous Flux	P F	Warranty
LD-YPL01	3W	AC 85~265V	15Pcs/2835	2700-6500K	≥ 80	195-225	≥0.75	2 years
LD-YPL02	6W	AC 85~265V	30Pcs/2835	2700-6500K	≥ 80	390-450	≥0.85	2 years
LD-YPL03	9W	AC 85~265V	45Pcs/2835	2700-6500K	≥ 80	585-675	≥0.90	2 years
LD-YPL04	12W	AC 85~265V	60Pcs/2835	2700-6500K	≥ 80	780-900	≥0.90	2 years
LD-YPL05	15W	AC 85~265V	75Pcs/2835	2700-6500K	≥ 80	975-1125	≥0.90	2 years
LD-YPL06	18W	AC 85~265V	90Pcs/2835	2700-6500K	≥ 80	1200-1350	≥0.90	2 years
LD-YPL07	24W	AC 85~265V	120Pcs/2835	2700-6500K	≥ 80	1680-1800	≥0.90	2 years

Photoelectricity Parametr:

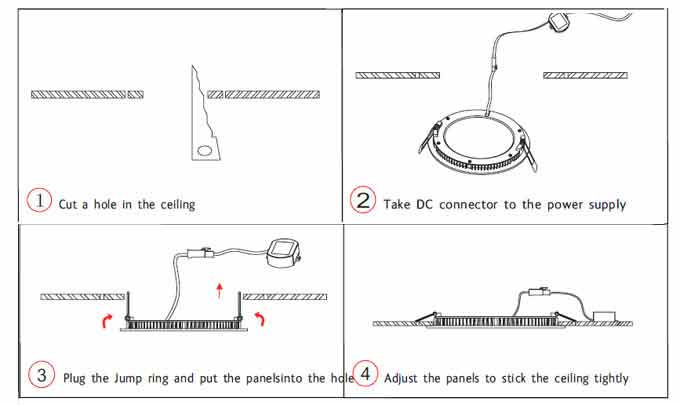

Installation Drawing:

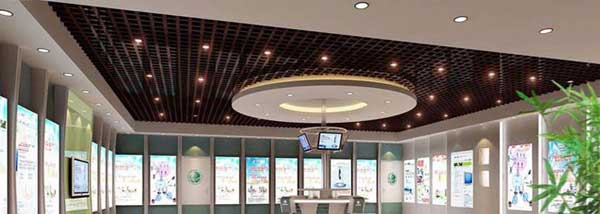

Application:
> 1.Residential Buildings, Home
> 2.Office, Meeting Room
> 3.School, Library
> 4.Factory, Warehouse
> 5.Hotel, Casino
> 6.Parking Garage
> 7.Hospital
> 8.Commercial Center
> 9.Supermarket, Shopping mall,anywhere you want
