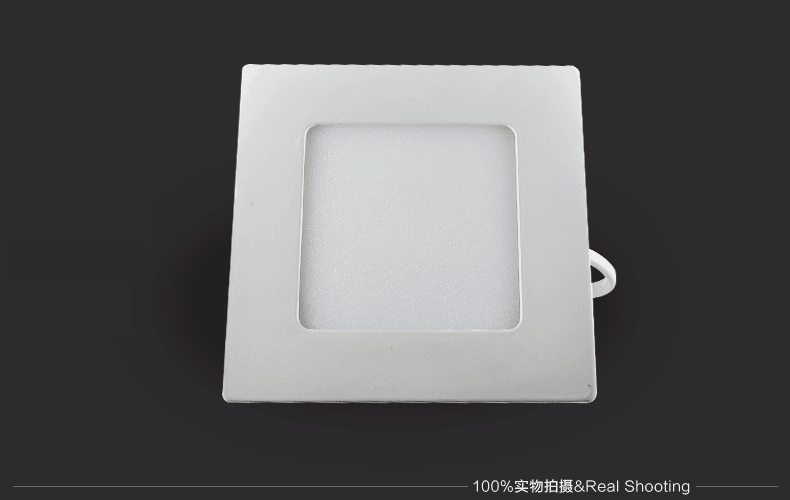

Square LED Panel Light

Update: 2014/7/23 View:

Brand: LEDE
Type:

Introduction

Features:

1.Super bright SMD2835 LED as lighting sources;high efficiency energy Saving Eco friendly;
2.Aluminium alloy frame with high thermal conductivity simple and nice;
3.Integrated heat dispersion structure low lumens depreciation and long lifespan;
4.External constant current driver universal available;
Technical Parameter:

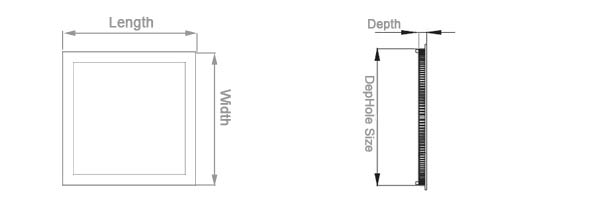

Model	Power	Length	Width	Depth	DepHole Size	view angle	Operating Temp.Range	BeamLife time	Color
LD-FPL01	3W	85mm	85mm	20mm	75X75mm	160°	-10~+40℃	30,000-50,000hrs	White
LD-FPL02	4W	105mm	105mm	20mm	95X95mm	160°	-10~+40℃	30,000-50,000hrs	White
LD-FPL03	6W	120mm	120mm	20mm	105x105mm	160°	-10~+40℃	30,000-50,000hrs	White
LD-FPL04	9W	145mm	145mm	20mm	130X130mm	160°	-10~+40℃	30,000-50,000hrs	White
LD-FPL05	12W	170mm	170mm	20mm	155X155mm	160°	-10~+40℃	30,000-50,000hrs	White
LD-FPL06	15W	195mm	195mm	20mm	175X175mm	160°	-10~+40℃	30,000-50,000hrs	White
LD-FPL07	18W	225mm	225mm	20mm	205X205mm	160°	-10~+40℃	30,000-50,000hrs	White
LD-FPL08	24W	300mm	300mm	20mm	280X280mm	160°	-10~+40℃	30,000-50,000hrs	White

Model	Power	Input Voltage	LED Qty./Type	CCT	CRI	Luminous Flux	P F	Warranty
LD-FPL01	3W	AC 85~265V	15Pcs/2835	2700-6500K	≥ 80	195-225	≥0.75	2 years
LD-FPL02	4W	AC 85~265V	20Pcs/2835	2700-6500K	≥ 80	260-300	≥0.75	2 years
LD-FPL03	6W	AC 85~265V	30Pcs/2835	2700-6500K	≥ 80	390-450	≥0.85	2 years
LD-FPL04	9W	AC 85~265V	45Pcs/2835	2700-6500K	≥ 80	585-675	≥0.90	2 years
LD-FPL05	12W	AC 85~265V	60Pcs/2835	2700-6500K	≥ 80	780-900	≥0.90	2 years
LD-FPL06	15W	AC 85~265V	75Pcs/2835	2700-6500K	≥ 80	975-1125	≥0.90	2 years
LD-FPL07	18W	AC 85~265V	90Pcs/2835	2700-6500K	≥ 80	1200-1350	≥0.90	2 years
LD-FPL08	24W	AC 85~265V	120Pcs/2835	2700-6500K	≥ 80	1680-1800	≥0.90	2 years

Photoelectricity Parametr:

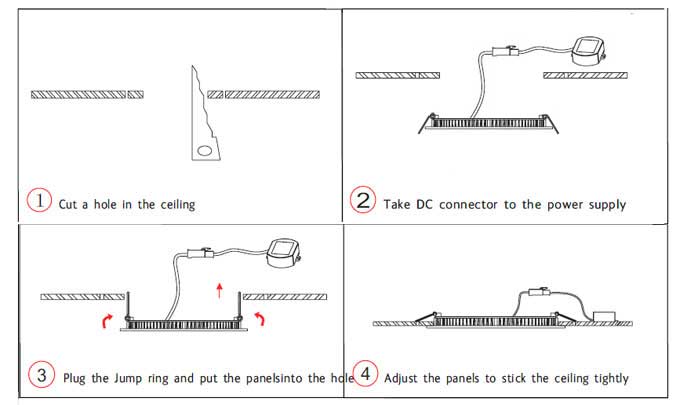

Installation Drawing:

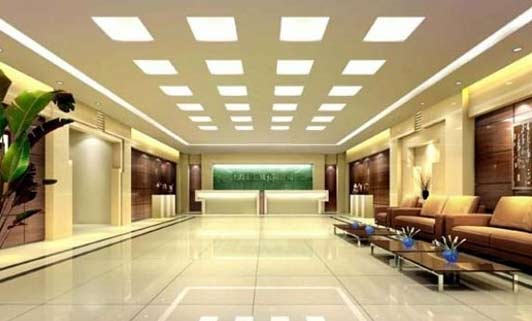

Application:
> 1.Residential Buildings, Home
> 2.Office, Meeting Room
> 3.School, Library
> 4.Factory, Warehouse
> 5.Hotel, Casino
> 6.Parking Garage
> 7.Hospital
> 8.Commercial Center
> 9.Supermarket, Shopping mall,anywhere you want
